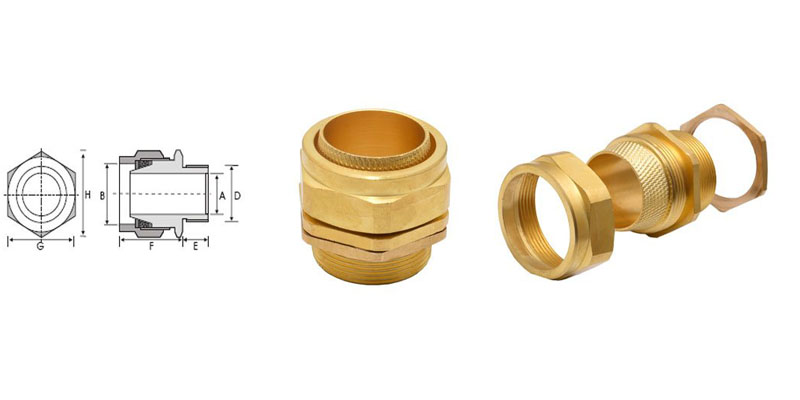

BW 2 Part Cable Gland
We manufacture a wide range of Brass BW Cable Glands by using quality raw material and extra component is added, a cone ring which prevents rotation of the wire and used as a knurled cone.
| Size | 20 mm to 90 mm |
|---|---|
| Standard | BS 6121 |
| Application | Dry Indoor, for use with all types of SWA Cable |
| Function | Provide mechanical Cable Retention & Electrical Wire continuity via Armoured Wire. |
| Material | Brass BS 2874 CZ121 Pb3 |
| Optional Threads | METRIC, NPT, BSP, PG or as specified |
| Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
| Operating Temp. | -800 C to +3000 C |
| Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement |
BW 2 Part Cable Gland : Technical Data
| Size | Cable Dimensions Accommodate | Armour Wire Diameter C (mm) |
ISO Entry Thread Diameter D (mm) | Length E (mm) | Hexagon Size | ||
|---|---|---|---|---|---|---|---|
| Under Armour Diameter A Max (mm) | Overall Diameter B Max (mm) | Across Flat G (mm) | Across Corner H (mm) | ||||
| 20S | 11.80 | 16.10 | 0.90/1.25 | 20 | 9.50 | 21 | 23.80 |
| 20 | 14.10 | 18.40 | 0.90/1.25 | 20 | 9.50 | 22.50 | 25.50 |
| 25 | 20.20 | 25.20 | 1.25/1.60 | 25 | 9.50 | 31.50 | 35 |
| 32 | 26.40 | 32.40 | 1.60/2.00 | 32 | 10 | 40.40 | 44.80 |
| 40 | 32.30 | 38.60 | 1.60/2.00 | 40 | 15 | 46.50 | 51 |
| 50 | 44 | 52 | 2.00/2.50 | 50 | 15 | 60.50 | 66 |
| 63S | 50.40 | 58.10 | 2.50 | 63 | 15 | 66 | 73 |
| 63 | 56.30 | 64.60 | 2.50 | 63 | 15 | 72.50 | 81.50 |
| 75S | 61 | 70.90 | 2.50 | 75 | 15 | 80 | 90.50 |
| 75 | 68.30 | 78.20 | 2.50/3.15 | 75 | 15 | 85 | 93 |
| 82 | 74.50 | 84.10 | 82 | 15 | 96 | 106 | |
| 90 | 80.50 | 92.70 | 3.15 | 90 | 15 | 102.50 | 112 |
BW 4 Part Cable Gland
| Size | 20 mm to 90 mm |
|---|---|
| Standard | BS 6121 |
| Application | Dry Indoor, for use with all types of SWA Cable |
| Function | Provide mechanical Cable Retention & Electrical Wire continuity via Armoured Wire. |
| Material | Brass BS 2874 CZ121 Pb3 |
| Optional Threads | METRIC, NPT, BSP, PG or as specified |
| Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
| Operating Temp. | -800 C to +3000 C |
| Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement |
BW 4 Part Cable Gland : Technical Data
| Size | Cable Dimensions Accommodate | ISO Entry Thread Diameter D (mm) | Length E (mm) | Hexagon Size | ||
|---|---|---|---|---|---|---|
| Under Armour Diameter A Max (mm) | Overall Diameter B Max (mm) | Across Flat G (mm) | Across Corner H (mm) | |||
| 20S | 11.60 | 17.30 | 20 | 10 | 21.50 | 24.30 |
| 20 | 14 | 20.20 | 20 | 10 | 24 | 26.80 |
| 25s | 19.30 | 24.80 | 25 | 10 | 30.40 | 33.70 |
| 25 | 20.60 | 26.50 | 25 | 10 | 32.50 | 35.60 |
| 32s | 27 | 33.30 | 32 | 10 | 39 | 42.60 |
| 32 | 27 | 33.30 | 32 | 10 | 39 | 42.60 |
| 40s | 30.20 | 37.80 | 40 | 10 | 44.60 | 49 |
| 40 | 34 | 41 | 40 | 10 | 47.50 | 53.50 |
| 50s | 40 | 48.80 | 50 | 13 | 57.20 | 64.50 |
| 63s | 51 | 61 | 63 | 13 | 69.20 | 77 |
| 63 | 56 | 65 | 63 | 13 | 74.50 | 82.70 |
| 75s | 63.50 | 73.30 | 75 | 13 | 84 | 93.30 |
| 75 | 67.50 | 78 | 75 | 13 | 87.50 | 98.50 |

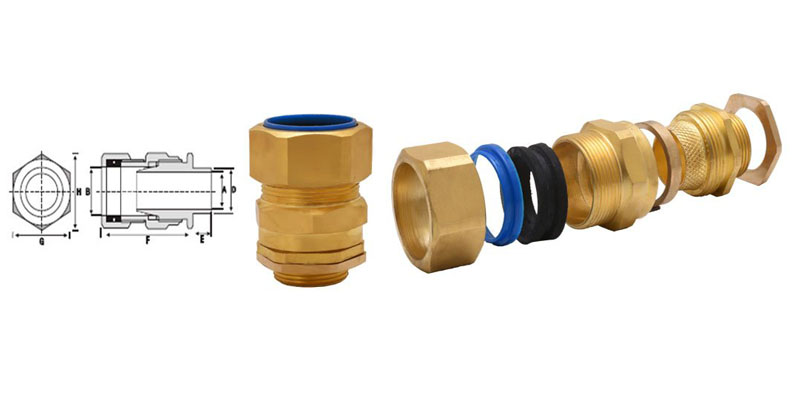

CW 4 Part Cable Gland
We are leading Manufacturer, Supplier and Exporter of Brass CW Cable Glands, CW3 Cable Glands, CW4 Cable Glands located in Jamnagar (India), which are used in dry indoor applications mainly exporting to international markets.
| Size | 20 mm to 90 mm S & L |
|---|---|
| Standard | EN 50262 : 1999 |
| Application | Dry Indoor, for use with all types of SWA Cable |
| Function | Provide for Environmental Seal in the Cable Outer Sheath,. Also provide mechanical cable retention & electrical continuity. |
| Material | Brass BS 2874 CZ121 Pb3 |
| Optional Threads | METRIC, NPT, BSP, PG or as specified |
| Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
| Operating Temp. | Standard seals -200 to +800 C |
| Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement |
CW 4 Part Cable Gland : Technical Data
| Size | Cable Dimensions Accommodate | ISO Entry Thread Diameter D (mm) | Length E (mm) | Hexagon Size | ||
|---|---|---|---|---|---|---|
| Under Armour Diameter A Max (mm) | Overall Diameter B Max (mm) | Across Flat G (mm) | Across Corner H (mm) | |||
| 20S | 12 | 19 | 20 | 9.50 | 23 | 25 |
| 20 | 15 | 23.50 | 20 | 9.50 | 27 | 31.80 |
| 25S | 17.20 | 25.20 | 25 | 10 | 30 | 34 |
| 25 | 20.70 | 30 | 25 | 10 | 34.50 | 38 |
| 32 | 27 | 36 | 32 | 10 | 40.50 | 44 |
| 40S | 31 | 41 | 40 | 12 | 46 | 51 |
| 40 | 33 | 44.50 | 40 | 13 | 48.50 | 53.50 |
| 50S | 40 | 52 | 50 | 15 | 58 | 64 |
| 50 | 44.70 | 57.20 | 50 | 14 | 62.50 | 69.50 |
| 63S | 52 | 64.50 | 63 | 15 | 72.50 | 80.50 |
| 63 | 57 | 67 | 63 | 15 | 77 | 86.50 |
| 75S | 62.30 | 77.60 | 75 | 15 | 86.50 | 96.10 |
| 75 | 69 | 79 | 75 | 15 | 92 | 103.50 |

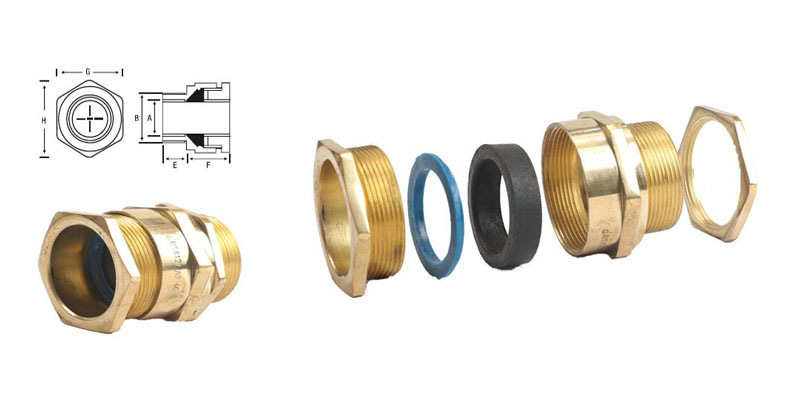

A1/A2 Type Cable Gland
We provided a large assortment of brass A2 type cable glands in various sizes and dimensions. Our nickel plated brass cable glands are manufactured from the premium raw materials as per the national and international quality standards.
| Size | 16 mm to 110 mm S & L |
|---|---|
| Standard | EN 50262 : 1999 |
| Application | Outdoor or Indoor for use with all types of Rubber or Plastic, Un-armoured Cable |
| Function | Provide Seal on Outer Sheath of Rubber or Plastic,Un-armoured Cable. |
| Material | Brass BS 2874 CZ121 Pb3 |
| Optional Threads | METRIC, NPT, BSP, PG or as specified |
| Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
| Operating Temp. | Standard seals -200 to +800 C |
| Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement |
A1/A2 Type Cable Gland : Technical Data
| Size | Cable Dimensions Accommodate | ISO Entry Thread Diameter D (mm) | Length E (mm) | Hexagon Size | ||
|---|---|---|---|---|---|---|
| Under Armour Diameter A Max (mm) | Overall Diameter B Max (mm) | Across Flat G (mm) | Across Corner H (mm) | |||
| 16 | 9.50 | 13 | 16 | 15 | 20 | 22.30 |
| 20S | 11.80 | 15.50 | 20 | 15 | 23 | 25 |
| 20 | 14.20 | 18.30 | 20 | 15 | 25 | 27 |
| 25S | 18 | 22 | 25 | 15 | 30 | 32 |
| 25 | 20.20 | 28 | 25 | 15 | 35 | 39 |
| 32S | 26.30 | 31.50 | 32 | 15 | 41 | 45 |
| 32 | 26.30 | 31.50 | 32 | 15 | 41 | 45 |
| 40S | 33 | 38.60 | 40 | 15 | 48.50 | 54.30 |
| 40S | 33 | 38.60 | 40 | 15 | 48.50 | 54.30 |
| 50S | 39 | 44 | 50 | 16.50 | 54 | 60 |
| 50 | 45 | 48.60 | 50 | 16.50 | 60 | 67 |
| 63S | 50.50 | 56.50 | 63 | 15 | 70 | 77.50 |
| 63 | 56 | 60 | 63 | 15 | 74 | 83 |
| 75S | 62.20 | 65.80 | 75 | 15 | 80 | 89.60 |
| 75 | 68.50 | 73.30 | 75 | 15 | 84 | 94 |
| 90 | 80 | 80 | 90 | 15 | 98 | 109.50 |
| 100 | ||||||
| 115 | 104.50 | 105 | 115 | 20 | 126 | |

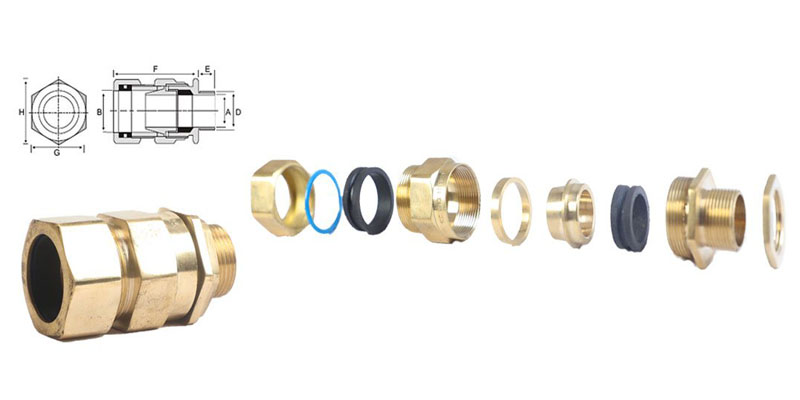

E1W Type Cable Gland
Our organization is engaged in manufacturing, supplying and exporting a comprehensive range of high quality Brass Cable Gland. These cable glands are manufactured by our experts using high grade brass and highly advanced technology.
| Size | 20 mm to 90 mm S & L |
|---|---|
| Standard | EN 50262 : 1999 |
| Application | Outdoor or Indoor for use with all types of SWA Cable |
| Function | Provide for Environmental Seal in the Cable Outer sheath. Also, provide mechanical cable retention & electrical continuity |
| Material | Brass BS 2874 CZ121 Pb3 |
| Optional Threads | METRIC, NPT, BSP, PG or as specified |
| Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
| Operating Temp. | Standard seals -200 to +800 C |
| Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement |
E1W Type Cable Gland : Technical Data
| Size | Cable Dimensions Accommodate | ISO Entry Thread Diameter D (mm) | Length E (mm) | Hexagon Size | ||
|---|---|---|---|---|---|---|
| Under Armour Diameter A Max (mm) | Overall Diameter B Max (mm) | Across Flat G (mm) | Across Corner H (mm) | |||
| 20S | 12 | 17 | 20 | 15 | 24 | 27.70 |
| 20 | 14.20 | 20.50 | 20 | 15 | 27 | 31.20 |
| 25S | 19 | 24 | 25 | 15 | 32 | 35.50 |
| 25 | 20.40 | 27.50 | 25 | 15 | 36 | 40 |
| 32 | 27 | 32.50 | 32 | 15 | 43 | 47.50 |
| 40 | 33 | 41.50 | 40 | 15 | 52 | 58 |
| 50 | 44.50 | 52.50 | 50 | 15 | 64.50 | 72.50 |
| 63 | 56.50 | 66.50 | 63 | 15 | 77.50 | 86 |

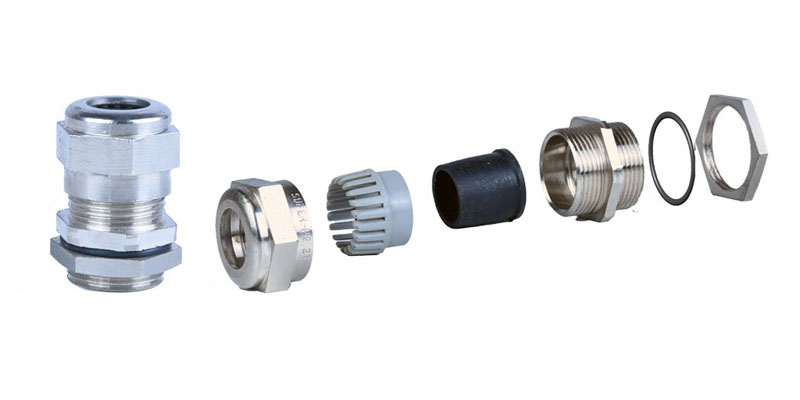

PG Type Cable Gland
We are a leading manufacturer, supplier and exporter of PG Type Cable Glands which are available with different color and used for for effective gripping for the tightening of the caps. The easy mounting of these PG cables glands helps for introducing cables and conductors into machines.
| Size | PG 7 to PG 48 |
|---|---|
| Standard | EN 50262 : 1999 |
| Application | Outdoor or Indoor for use with all types of Un-armoured Cable |
| Ingress Protection | IP65 |
| Function | Provide Seal on Outer Sheath of the Un-armoured Cable |
| Material | Brass BS 2874 CZ121 Pb3 |
| Optional Threads | METRIC, NPT, BSP, PG or as specified |
| Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
| Operating Temp. | Standard seals -200 to +800 C |
| Thread | PG and also available in Metric Threads on request |
| Seals | Neoprene Material |
| Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement |

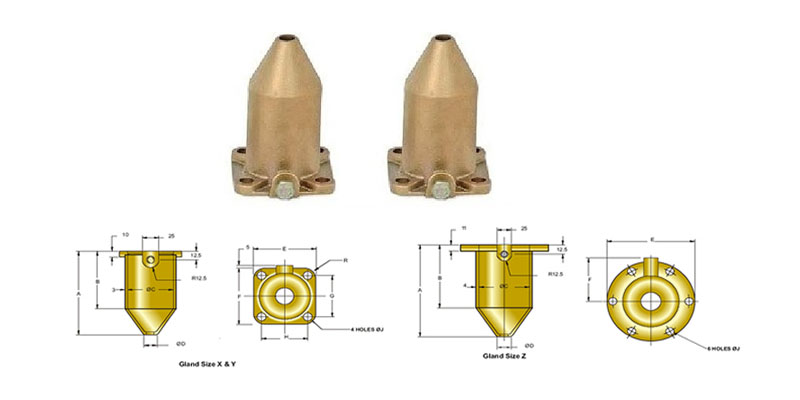

Wiping Type Cable Gland
We have developed a huge range of Wiping Cable Glands which are manufactured from high quality brass material compliances with BS Standard BS 6121 and can be supplied to our client at affordable prices.
| Size |
X: 12 to 51 Y: 25 to 78 Z: 25 to 94 |
|---|---|
| Standard | EN 50262 : 1999 |
| Application | For Use with SWA, Plastic and Rubber (Elastomer) sheathed cables. Used in dry indoor conditions. |
| Function | Used indoor conditions inner ring frames positive armour clamp an earth continuity. |
| Material | Brass BS 2874 |
| Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |

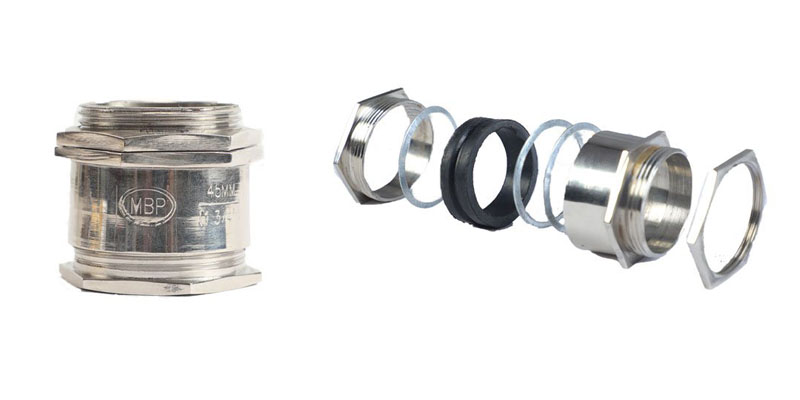

Single Compressor Cable Gland
We have developed a huge range of Wiping Cable Glands which are manufactured from high quality brass material compliances with BS Standard BS 6121 and can be supplied to our client at affordable prices.
| Size | 16 mm to 90 mm |
|---|---|
| Standard | IS 12943 : 1990 |
| Application | Indoor or Outdoor Cable Glands suitable for armoured / un-armoured cables. |
| Function | Grips the outer sheath of cable. |
| Material | Brass (IS-319) Standard - (Al. / S.S. / M.S. also available) |
| Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
| Entry Threads | Metric threads with 1.5 pitch as per IS 4218 standard |
| Ingress Protection | IP 60 as per IS 12063 |
| Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement |

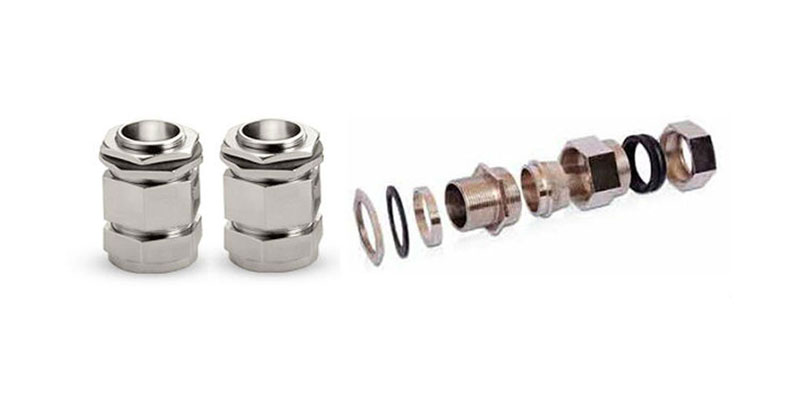

Double Compressor Cable Gland
We have developed a huge range of Wiping Cable Glands which are manufactured from high quality brass material compliances with BS Standard BS 6121 and can be supplied to our client at affordable prices.

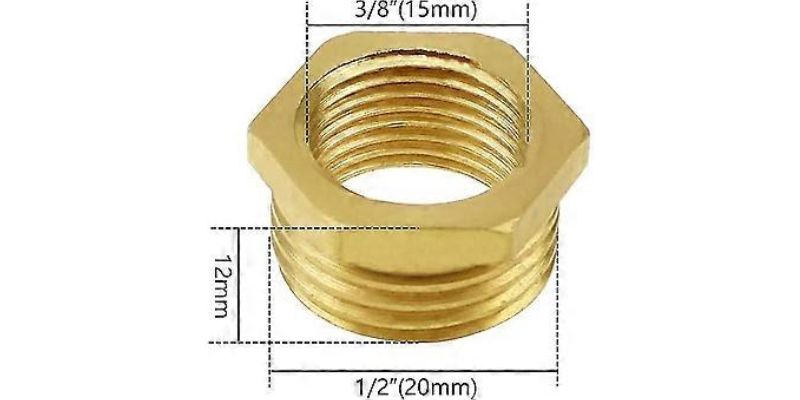

| Size | 16 mm to 90 mm |
|---|---|
| Standard | BS 6121 |
| Application | Weather Proof Double Compression Glands are weather proof and dust proof (IP-66) which can be used in normal climatic condition. Also when protected by PVC shrouds it can be used in corrosive atmosphere. |
| Function | Seals grips inner & outer sheath of cable, Cone & Ring clamps the armour. |
| Material | Brass (IS-319) Standard - (Al. / S.S. / M.S. also available) |
| Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
| Entry Threads | BSC Standard - (PG / Metric / NPT / BSP / also available) |
| Ingress Protection | IP 60 as per IS 12063 |
| Accessories | PVC Shroud, Earth Tag, Stopping Plug, Reducer, Adapter, etc. are available with specified dimensions in accordance to the Gland separately. |

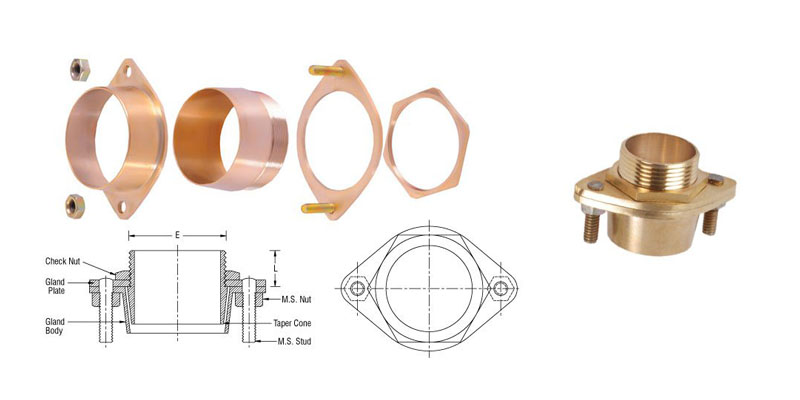

Flange Type Cable Gland
Flange Type Cable Gland: With years of experience, we have gained tremendous expertise in manufacturing top quality Flange Type Cable Glands of all sizes. Obtained from bars casting and powered with galvanized form of mild steel based nuts/studs.
| Size | 5 NUMBER TO 004 NUMBER |
|---|---|
| Standard | IS 319 |
| Application | Brass Indoor/outdoor cable gland suitable for all types of armoured. These are Weather proof and may be use in corrosive conditions when protected by a shroud. |
| Material | Brass (IS-319) Standard - (Al. / S.S. / M.S. also available) |
| Finish | Brass Finish or as specified |
| Entry Threads | ET / B.S. Conduit |
| Ingress Protection | IP 60 as per IS 12063 |
| Accessories | Earth Tag, Blank plugs Adapter/Reducer etc. are available with specified dimensions in accordance to the Gland separately. |

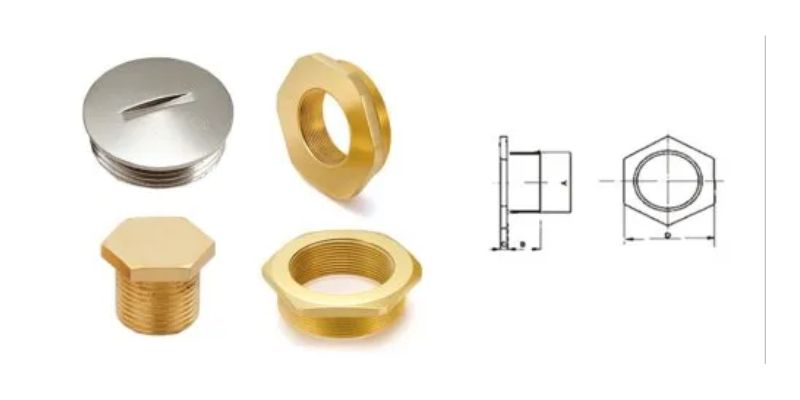

Brass Stop Plugs
We manufacture and supply a premium range of Brass Stop Plugs designed to seal and close unused threaded entries in flameproof and weatherproof enclosures. These plugs ensure safety, reliability and protection against dust and moisture in industrial applications.
Our stop plugs are available in multiple thread standards and sizes, precisely engineered to meet international quality norms. Whether for general electrical fittings or specialized industrial assemblies, Jay Engineering provides durable and corrosion-resistant brass stop plugs tailored to your requirements.
| Material |
Free Cutting Brass IS (CuZn39Pb3) ISO Type (I) / Free Cutting Brass as per BS 249 Type (I) / High Grade Free Cutting Brass / Any Special Brass Composition as per Customer Requirement |
|---|---|
| Threads |
ISO Metric, MM, PG, BSW, BSP, BSB, BSF, BA, NPT, NPTF, UNC, UNF, UNEF etc. Custom thread standards also available as per design. |
| Finish & Coating | Natural Brass, Nickel Plated, Tin Plated or Custom Coating as per Specification |
| Application | Used to close or seal unused entries in electrical, flameproof and industrial enclosures, ensuring safety and environmental protection. |
PG Thread Dimensions
| Thread | Diameter (mm) | Length (mm) | L1 (mm) |
|---|---|---|---|
| PG 7 | 14 | 8 | 5 |
| PG 9 | 17 | 9 | 6 |
| PG 11 | 20 | 9 | 6 |
| PG 13.5 | 22 | 9.5 | 6.5 |
| PG 16 | 24 | 9.5 | 6.5 |
| PG 21 | 30 | 11 | 7 |
| PG 29 | 39 | 12 | 8 |
| PG 36 | 50 | 15 | 9 |
| PG 42 | 57 | 16 | 10 |
| PG 48 | 64 | 16 | 10 |
Metric Thread Dimensions
| Thread | Diameter (mm) | Length (mm) | L1 (mm) |
|---|---|---|---|
| M 12 x 1.5 | 14 | 7.5 | 5 |
| M 16 x 1.5 | 18 | 8 | 5 |
| M 20 x 1.5 | 22 | 9.5 | 6 |
| M 25 x 1.5 | 28 | 11 | 7 |
| M 32 x 1.5 | 35 | 12 | 8 |
| M 40 x 1.5 | 43 | 13 | 8 |
| M 50 x 1.5 | 53 | 15 | 9 |
| M 63 x 1.5 | 66 | 16 | 10 |

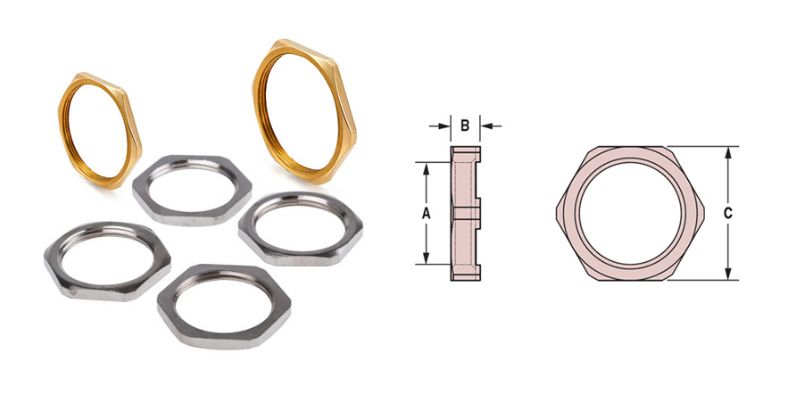

Brass Lock Nuts
We manufacture and export a wide range of Brass Lock Nuts, designed for reliable clamping and securing of cable glands and electrical conduit fittings.
These high-quality lock nuts are an essential accessory in electrical installations, ensuring strong mechanical connections and effective earthing continuity.
Jay Engineering offers Nickel-Plated Brass Lock Nuts that combine corrosion resistance, precision threading and superior grip strength.
Our products are used in a wide range of industries worldwide, supporting applications that demand durability and precision.
| Material |
Free Cutting Brass IS 319 (CuZn39Pb3) / Brass as per BS 249 Type (I) / High-Grade Free Cutting Brass / Special compositions available on request. |
|---|---|
| Finish & Coating | Natural Brass, Nickel Plated or Custom Finish as per specification. |
| Application | Used as accessories for clamping cable glands and electrical conduit fittings in electrical panels, junction boxes and industrial enclosures. |
PG Lock Nut Dimensions
| Thread | Rod Size (mm) | A/F (mm) | A/C (mm) | Thickness (mm) |
|---|---|---|---|---|
| PG 07 | 15.00 | 16.60 | — | 2.80 |
| PG 09 | 18.00 | 20.00 | — | 2.80 |
| PG 11 | 21.00 | 23.50 | — | 3.00 |
| PG 13.5 | 23.00 | 25.50 | — | 3.00 |
| PG 16 | 26.00 | 29.00 | — | 3.00 |
| PG 21 | 32.00 | 35.50 | — | 3.50 |
| PG 29 | 41.00 | 45.00 | — | 4.00 |
| PG 36 | 51.00 | 56.00 | — | 5.00 |
| PG 42 | 60.00 | 65.00 | — | 5.00 |
| PG 48 | 64.00 | 69.00 | — | 5.50 |
Metric Lock Nut Dimensions
| Thread | Rod Size (mm) | A/F (mm) | A/C (mm) | Thickness (mm) |
|---|---|---|---|---|
| M 12 | 15.00 | 16.60 | — | 2.80 |
| M 16 | 19.00 | 21.00 | — | 2.80 |
| M 20 | 24.00 | 26.70 | — | 3.00 |
| M 25 | 29.00 | 32.00 | — | 3.50 |
| M 32 | 36.00 | 39.00 | — | 4.00 |
| M 40 | 46.00 | 50.00 | — | 4.50 |
| M 50 | 55.00 | 60.00 | — | 5.00 |
| M 63 | 70.00 | 78.00 | — | 5.50 |
Brass Reducer Adaptor
We manufacture and export a premium range of Brass Reducer Adaptors designed to meet diverse industrial requirements.
These precision engineered components are used to connect cables or fittings of different sizes, ensuring a secure and leak-proof fit across a variety of electrical and mechanical systems.
Manufactured with high accuracy and smooth finishing, our Brass Reducer Adaptors are suitable for use in automotive, electrical, pneumatic, hydraulic and telecommunication industries.
They are available in a wide range of thread forms and sizes based on customer specifications and drawings.
| Material |
IS 319 Free Cutting Brass / BS 249 Free Cutting Brass Material / High Grade Free Cutting Brass / Any Special Brass Composition on Request. |
|---|---|
| Threads |
ISO Metric, MM, PG, BSW, BSP, BSB, BSF, BA, NPT, NPTF, UNC, UNF, UNEF, etc. Custom threads available as per design or specification. |
| Size | Any size available as per customer drawings or technical specifications. |
| Finish & Coating | Natural Brass, Nickel Plated, Tin Plated or any custom coating as per customer requirement. |
| Applications | Ideal for connecting different cable gland sizes or thread types, providing smooth transitions between mechanical or electrical fittings. Widely used in automotive, electrical, oil & gas and industrial machinery setups. |
